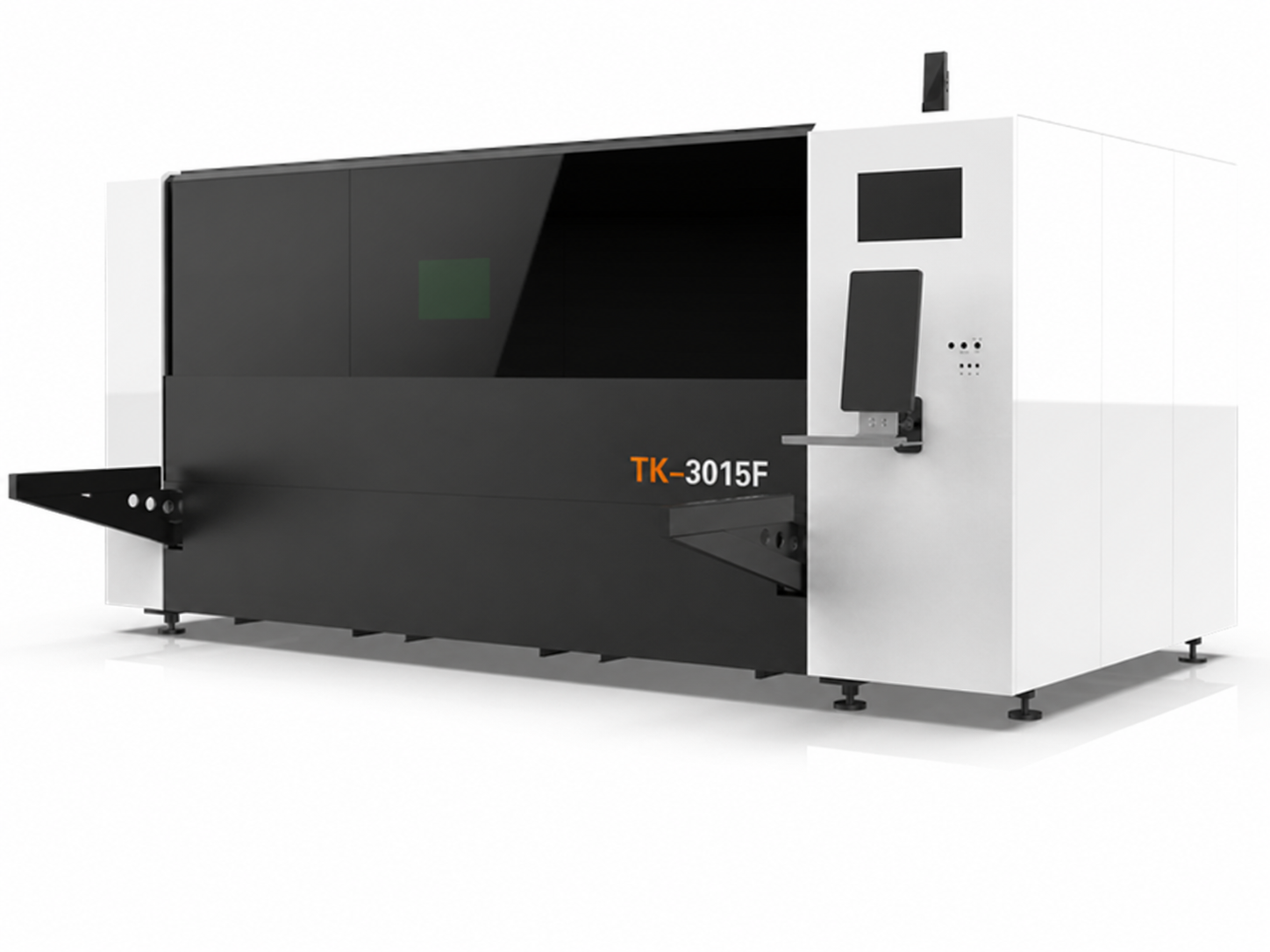

TK - 3015 Fiber Laser Cutting Machine | |
Seller |
Company Name: Tekkaform Solution Inc. Company Address: 2115 S service road, Oakville, ON L6L 5W2 Whatsapp: +1 647 8662687 Mobile: +1 647 8662687 Contact Person: Anna Email Address: info@tekkaform.com
|
Model | TK-3015 F |
Power(optional) | 3000W MAX LASER SOURCE |
Type | Fiber Laser Cutting Machine |
Packing Size(m) | 4700*3350*2450mm |
Gross weight | 4000KG |
Container | 20GP 20GP will not be enough to accommodate other large accessories |
TECHNICAL PARAMETERS
Model | TK 3015 F |
Maximum processing range | 3000x1500mm |
X-axis travel | 3000mm |
Y-axis travel | 1500mm |
Z-axis travel | 100mm |
X / Y / Z axis positioning accuracy | ±0.03mm |
X / Y / Z axis repeat positioning accuracy | ±0.02mm |
X / Y axis maximum moving speed | 80m/min |
X / Y / Z axis maximum cutting speed | 80m/min |
X / Y / Z maximum acceleration | 1.2G |
Transmission type | Dual drive rack |
Z-axis motor power | 400W |
X / Y -axis travel motor power | X-axis:850W Y-axis:1.3KW |
Guide width | X-axis:20mm Y-axis:25mm |
Working platform load | 500kg |
Enclosed laser protection | Yes |
Lubrication type | Automatic oiling |
Power available | 1000-6000W |

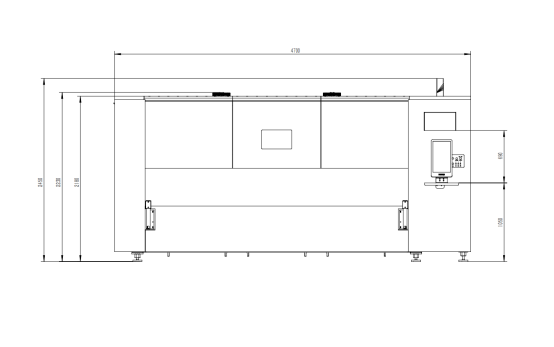

Dimension | 4700*3350*2450mm |
Total Weight | 5500KG |
TK - 3015 F Main Specification | |||
No. | Name | Quantity | Brand |
1 | Laser source | 1 set | MAX |
2 | Laser head | 1 set | Raytools Cutting head |
3 | Machine body | 1 set | Tekkaform |
4 | Gear and Rack | 1 set | Taiwan YYC |
5 | Reducer | 1 set | France Motovario |
6 | Motor on X, Y axis | 1 set | INOVANCE |
7 | Motor on Z axis | 1 set | INOVANCE |
8 | Exhaust Smoke System | 1 set | China |
9 | Guide rail | 1 set | HIWIN |
10 | Electronic Components | 1 set | CHNT |
11 | Pneumatic Components | 1 set | Japan CKD / SMC |
12 | Control system | 1 set | Cypcut 2000E |
13 | Water chiller | 1 set | S&A Water Chiller |
14 | Control cabinet | 1 unit | Tekkaform |
15 | 3rd generation aviation aluminum Beam | 1 unit | Tekkaform |
16 | Auto higher | 1 unit | Cypcut |
17 | Auto lubrication | 1 set | China |
18 | Industrial computer | 1 set | HP |
19 | All closed protective cover | 1 set | Tekkaform |
PRODUCT ADVANTAGES

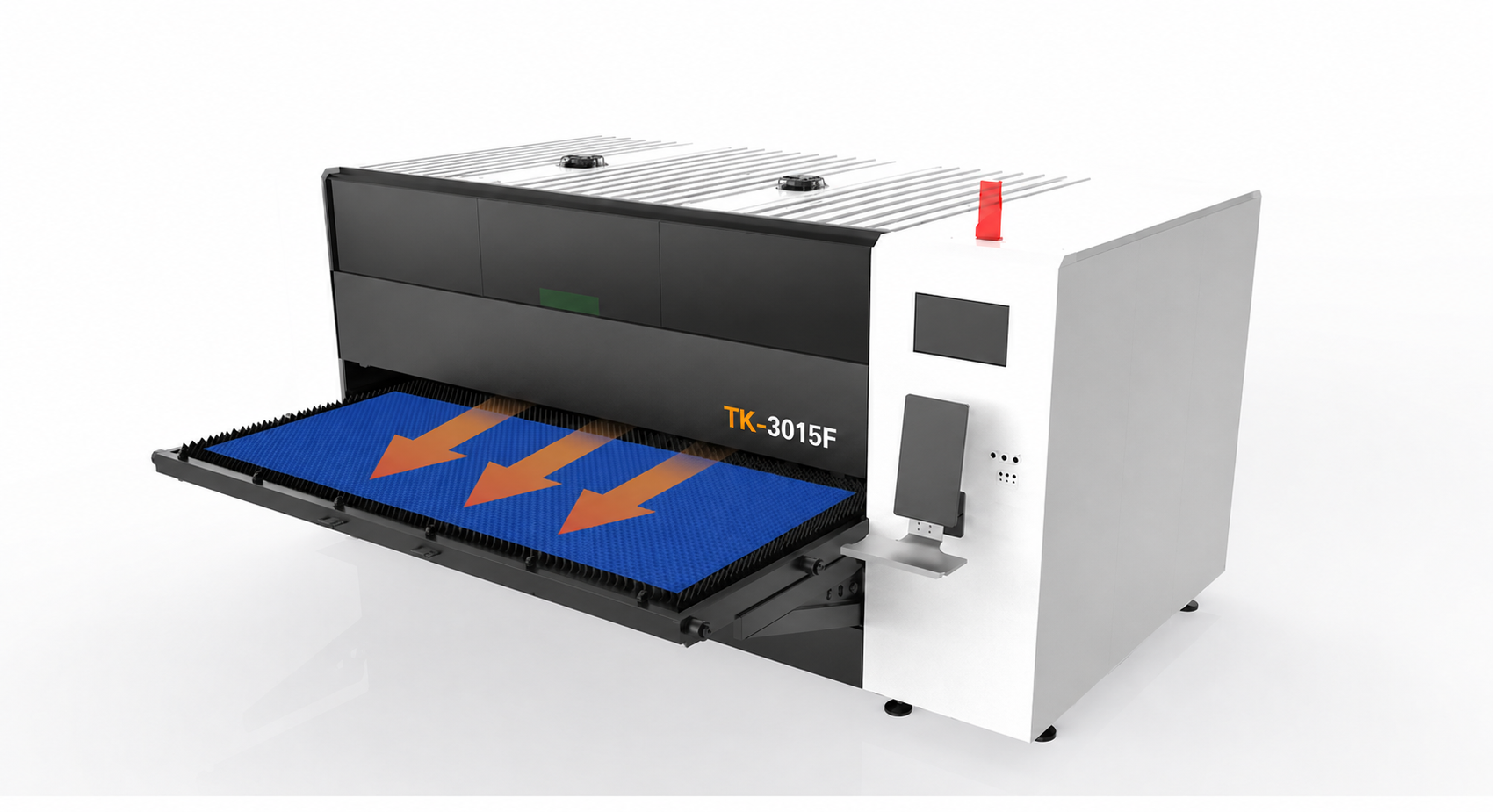

● Platform can be pulled out
The cutting platform can be pulled out, material loading more convenient.

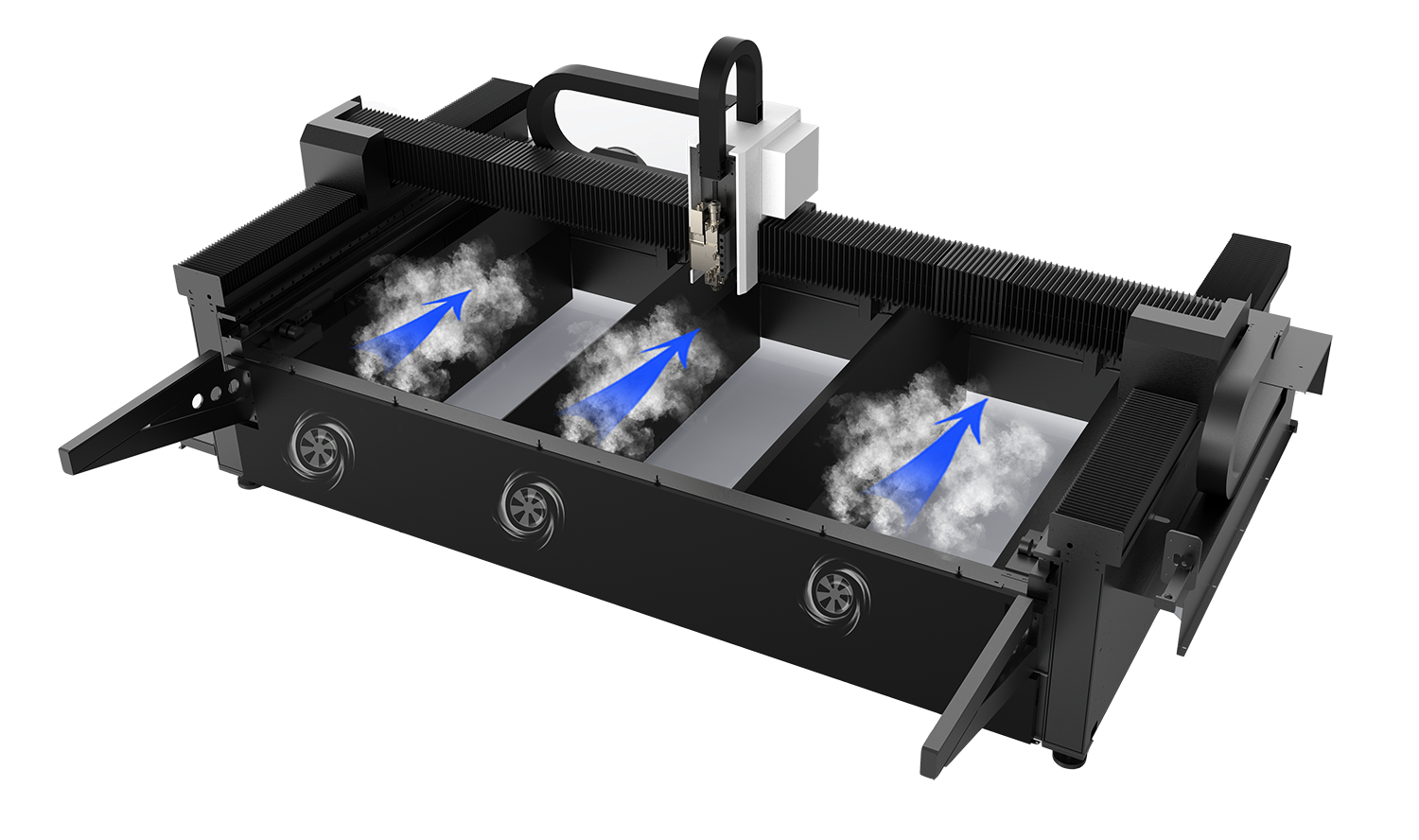

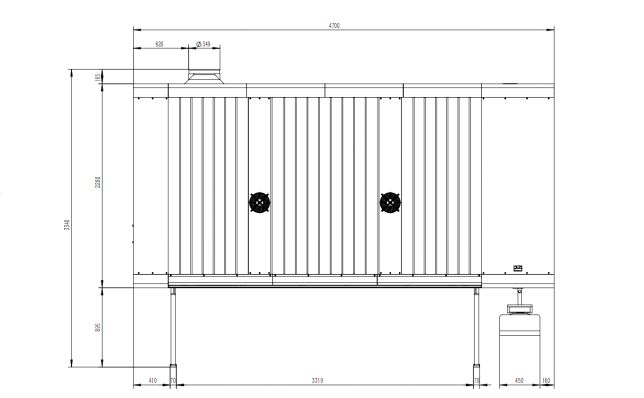

● Segmented smoke extraction
Segmented smoke exhaust, one end of the fan blows, the other end of the fan sucks, blowing and sucking, the smoke exhaust effect is better.

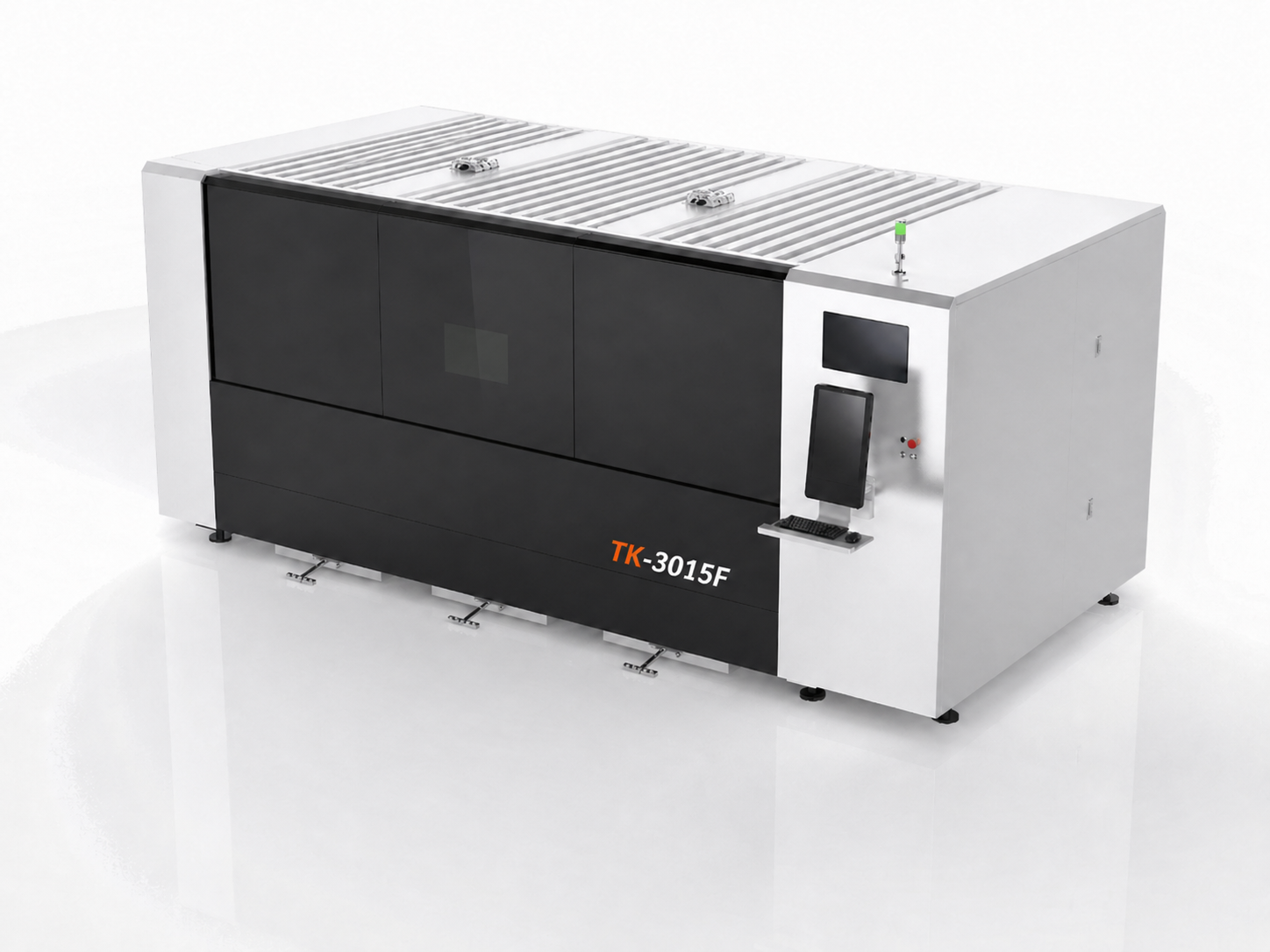

● With a Fully Enclosed Design
The fully enclosed cover has beautiful appearance, good smoke exhaust effect, hygiene and high safety, which can meet the
requirements of European CE and American FDA safety standards.

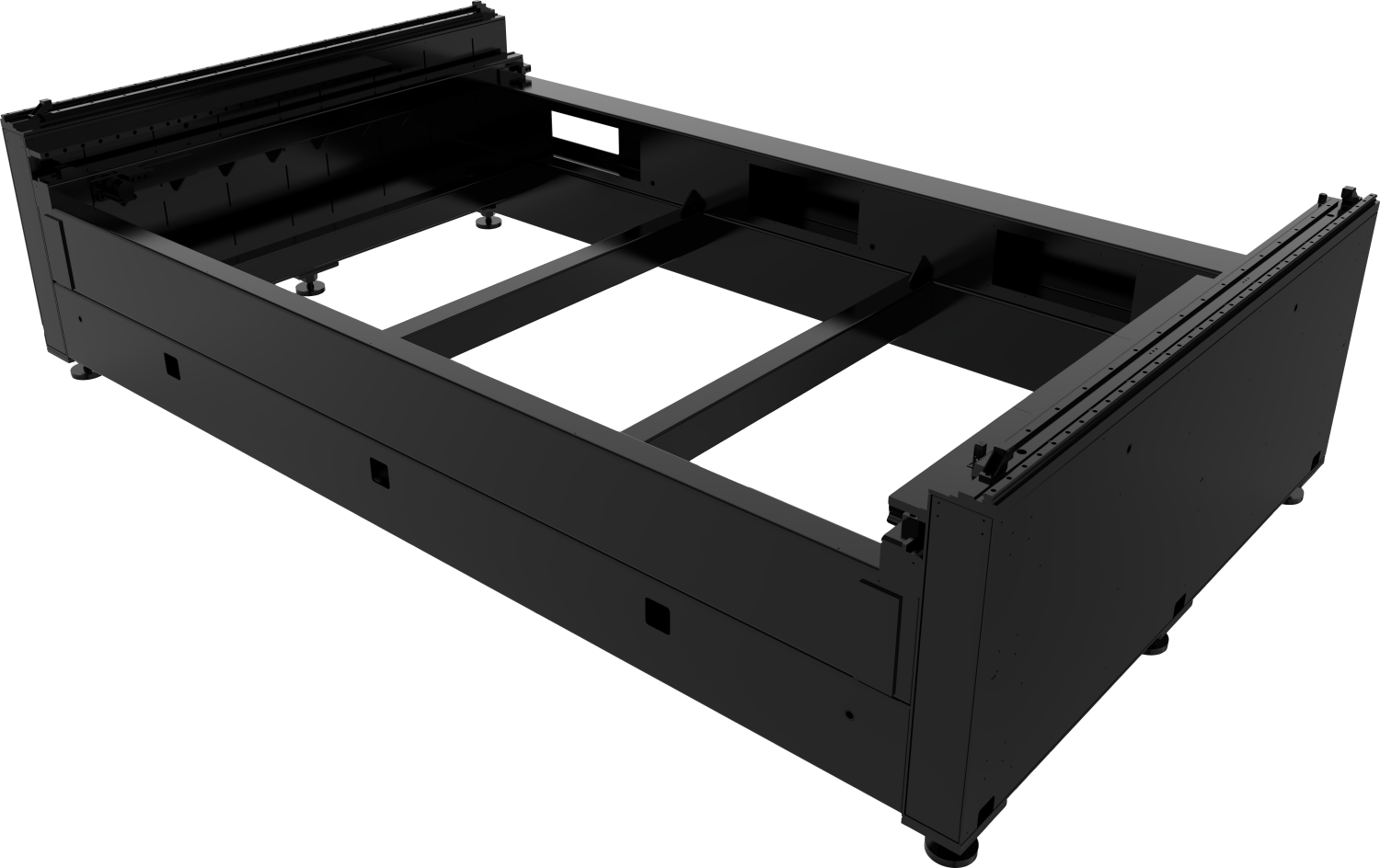

● Welded Bed With Mortise-and-tenon Joint
The bed is welded by high-quality steel plate and pipe. The mortise and tenon welding process ensure that the bed has sufficient structural stability, shock resistance and no deformation for long time.
● Packing

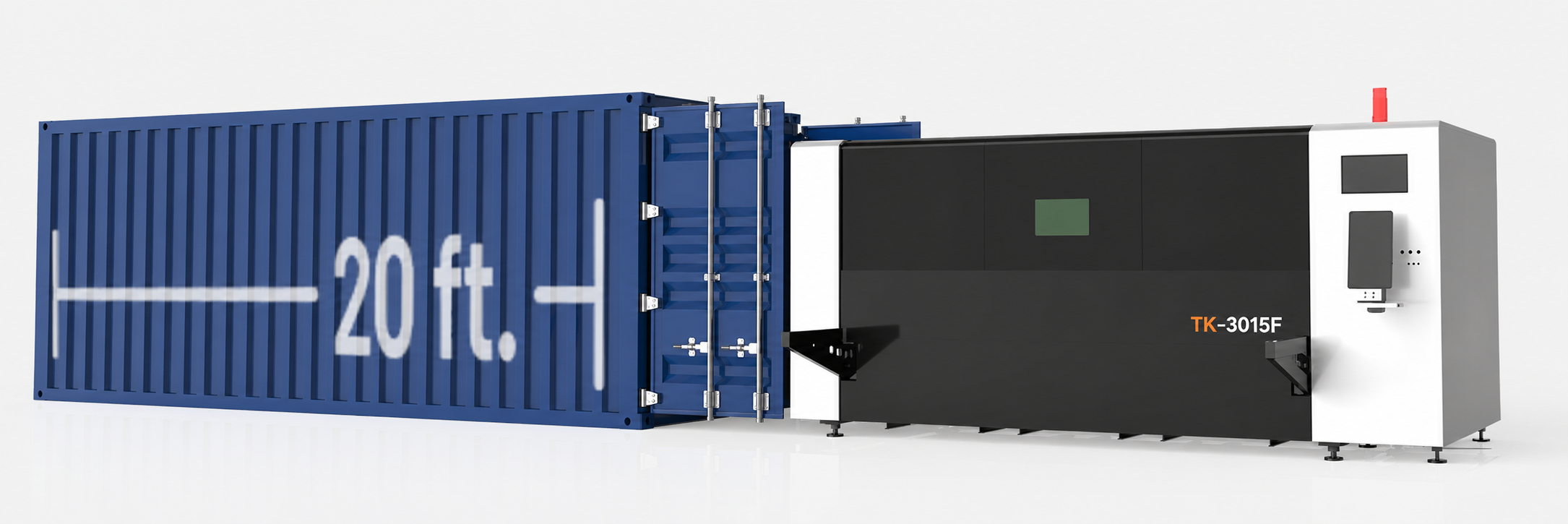

Built-in electric control cabinet and laser source Save freight cost. Save installation time. Whole machine can fit into a 20-foot container.
MAIN CONFIGURATION

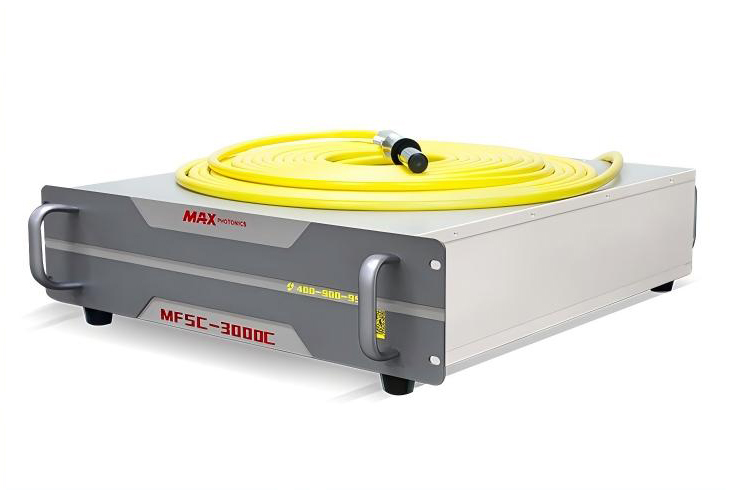

 | MAX Laser Source High Electro-optic Conversion Efficiency High reliability, long service life Maintenance-free Operation |

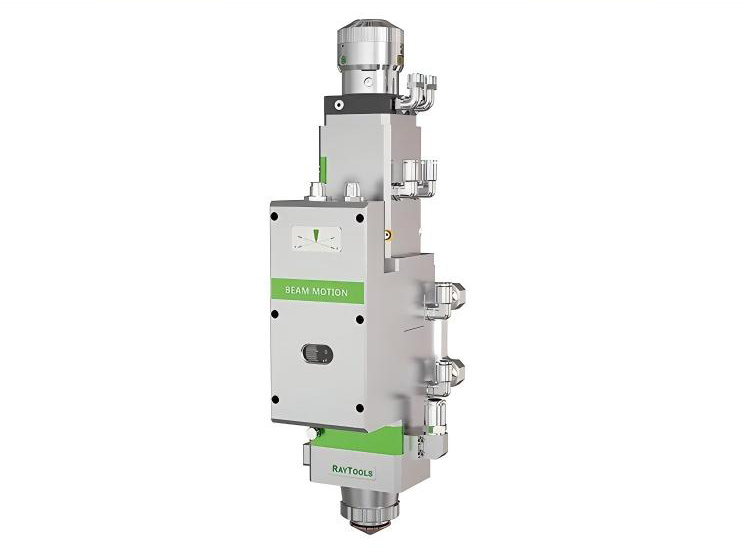

 | Raytool cutting head Auto focus Optimized optical configuration Protect modules for calibration and focus lens Drawer-type of lens mount, quick and easy use |

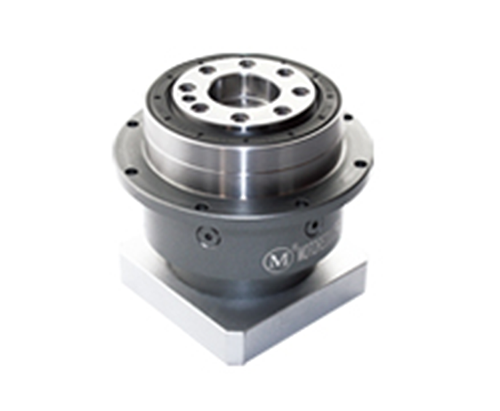

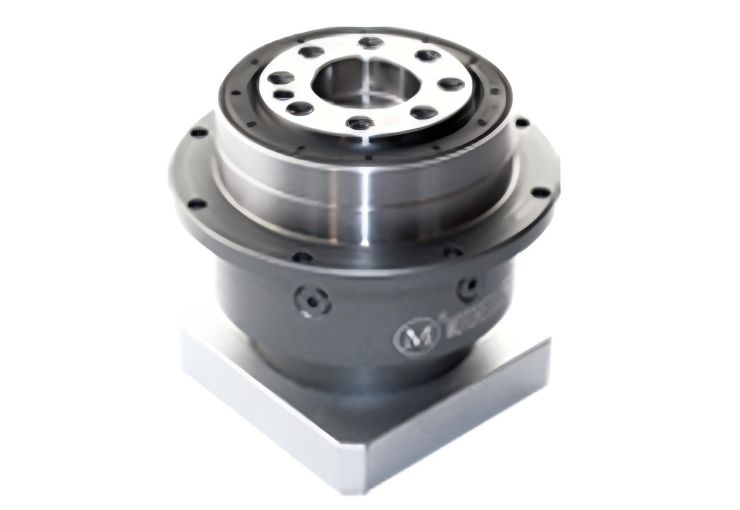

 | France MOTOREDUCER Stable operation Low noise Large output torque High speed ratio |

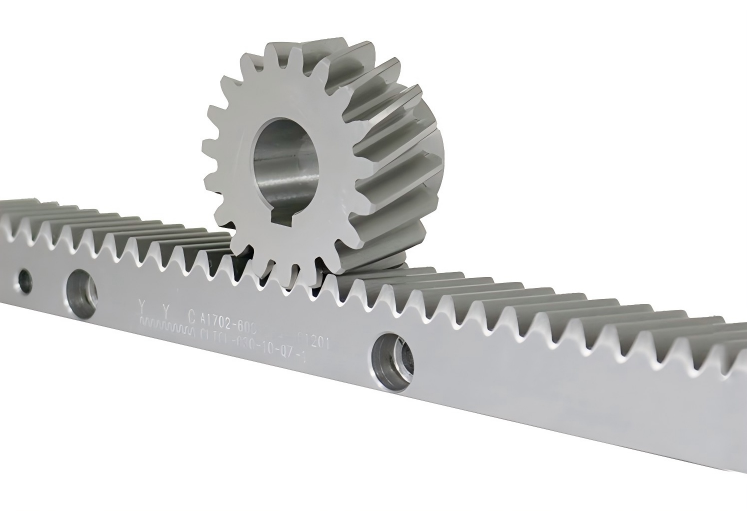

 | Taiwan - YYC High precision Accurate instantaneous transmission ratio High transmission efficiency; Long life |

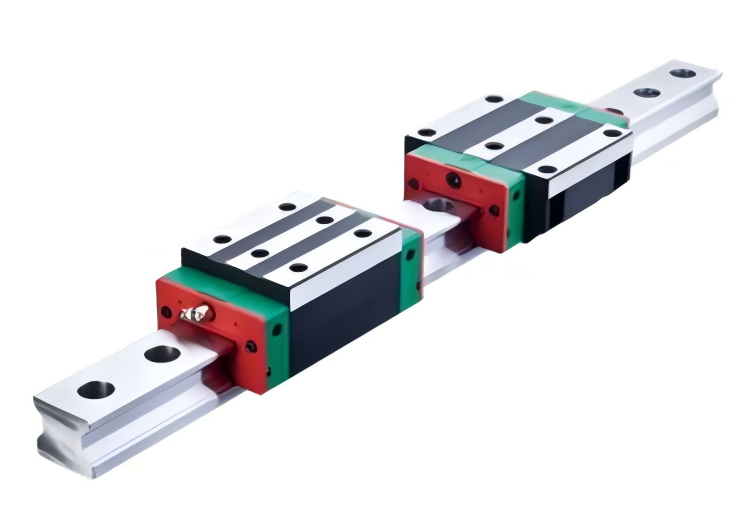

 | HIWIN rail High precision Accurate instantaneous transmission ratio High transmission efficiency; Long life |

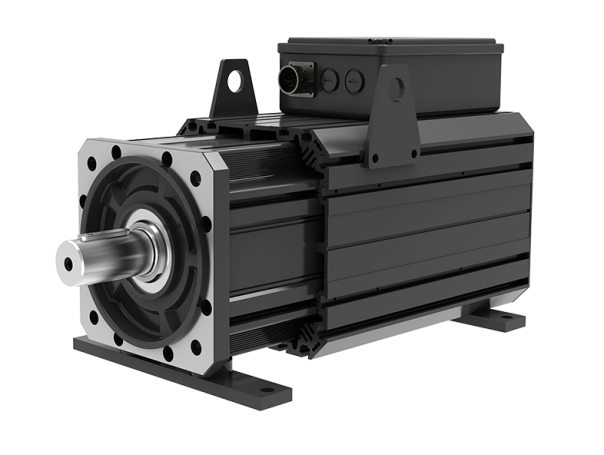

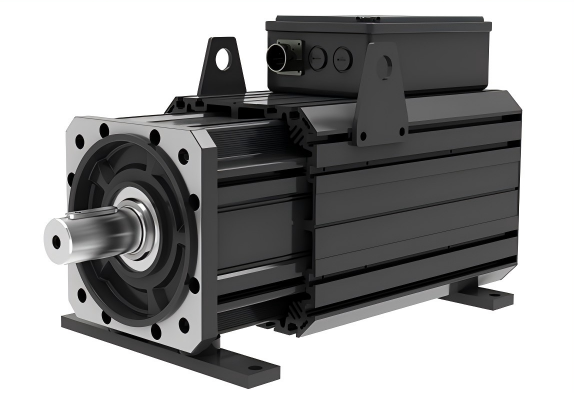

 | Servo Motor-Inovance High accuracy High-speed performance High adaptability & stability Timeliness, short dynamic response time of motor |

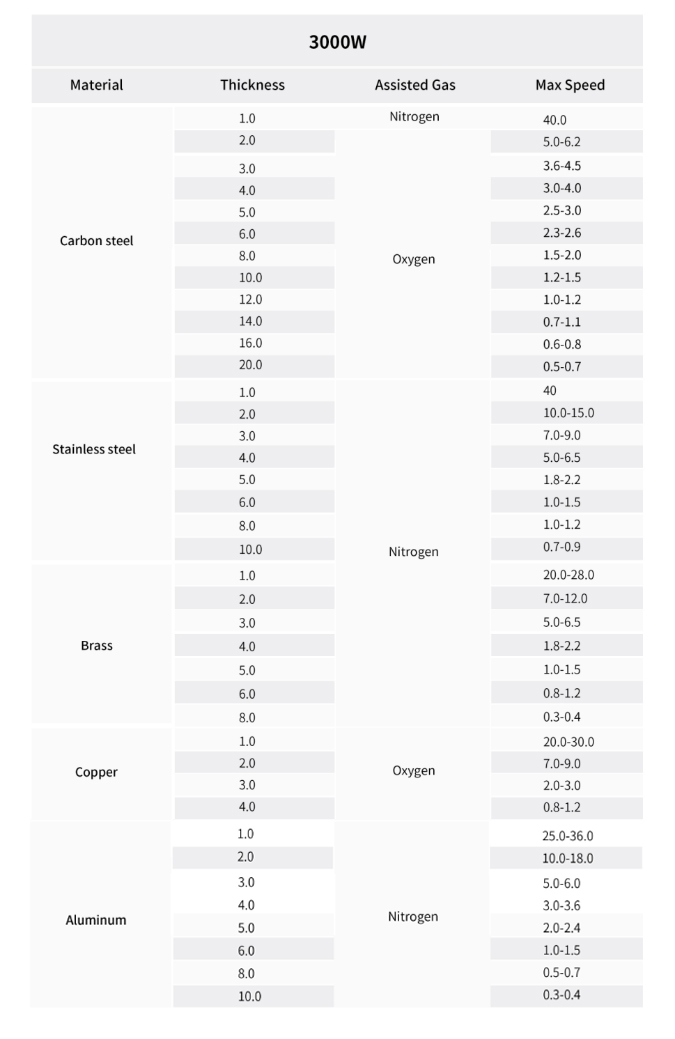

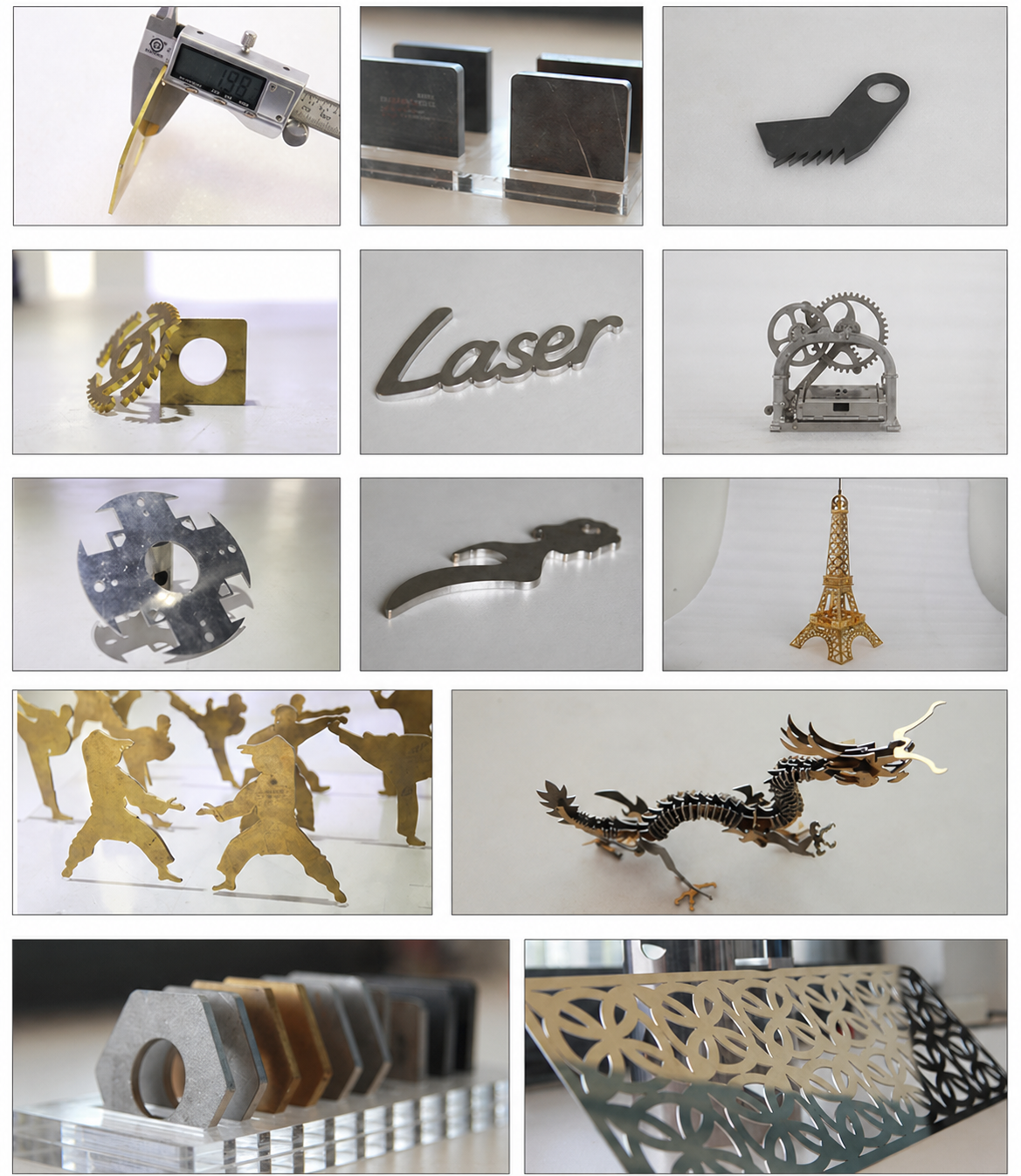

CUTTING PARAMETERS
Simple Display

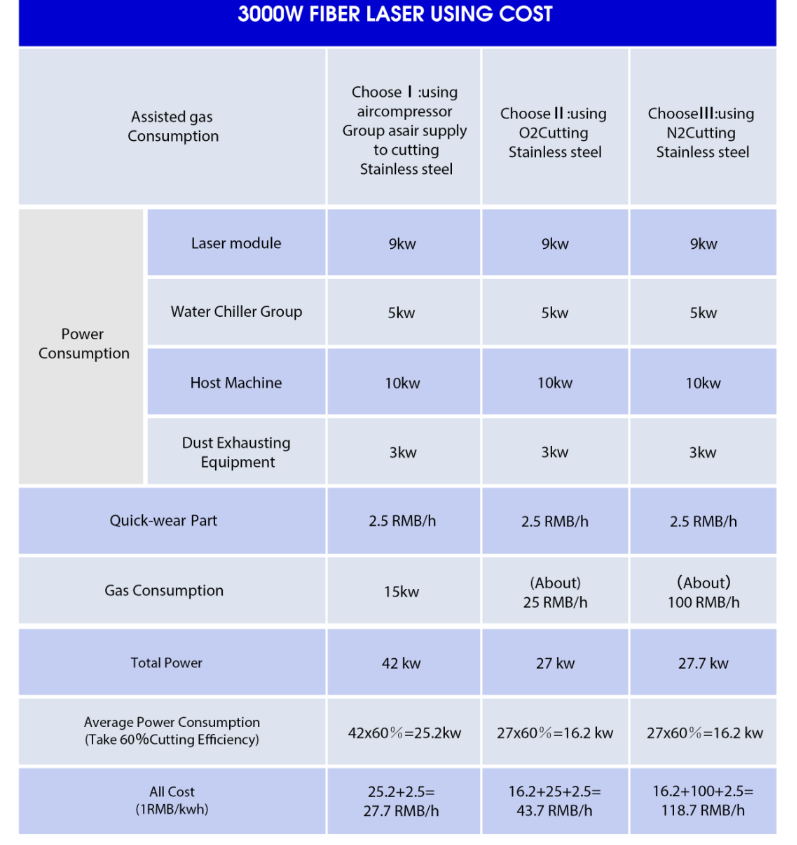

COST ANALYSIS
