TekkaBind
Traditional methods focus on fastening. Tekkabind focuses on efficiency, flexibility, and cost reduction.

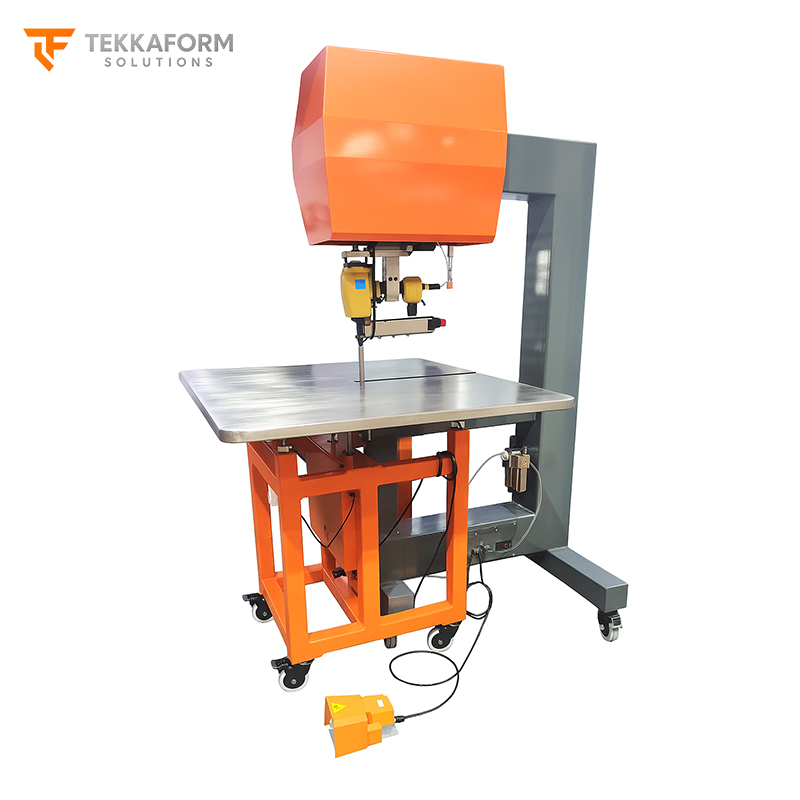

Tekkabind is an advanced channel letter stapling system designed to simplify and speed up the channel letter assembly process. The system replaces traditional riveting with a faster and more cost-efficient stapling solution, allowing sign shops to assemble letters with greater efficiency and consistency.
Tekkabind works with side return aluminum thickness ranging from 0.04'' to 0.063'' and supports multiple backing materials, including ACM (aluminum composite material), aluminum, and polycarbonate. The adjustable worktable automatically moves up and down to provide an ergonomic working height, allowing one operator to complete the stapling process efficiently.
Powered by a pneumatic system with foot pedal control, Tekkabind ensures safe and stable operation. A built-in laser guide helps operators position staples accurately for clean and consistent assembly results.
One of the biggest advantages of Tekkabind is cost reduction. The system allows manufacturers to use ACM back panels instead of solid aluminum, significantly lowering material costs, while the staples themselves are much more affordable than traditional rivets.
The result is a faster, safer, and more economical solution for modern channel letter production.
Machine Specifications & Capabilities
· Laser line positioning indicator to ensures every staple is placed with accuracy
· Connects side return (up to 0.063" aluminum) to back panel (ACM, aluminum, or polycarbonate)
· Uses standard industrial 16GA crown staples
· Electric lifting table with manual backup adjustment
· Operated with foot pedal control – efficient and easy to use
· Empty Staple Alert – automatic reminder when staples run out
· Built-in safety trigger system – stapler only triggers when close to the channel letter
Applications
· Channel letters & Sign Boxes of any size
· Specify for Notching & Flanging type letters
Key Features of Tekkabind
√ Fast Channel Letter Assembly
Replaces traditional riveting with a faster and more efficient stapling system.
√ Compatible Material Thickness
Works with side return aluminum from 0.04" to 0.063".
√ Flexible Back Panel Options
Supports ACM, aluminum, and polycarbonate back panels.
√ Lower Material Cost
Allows the use of ACM instead of solid aluminum, reducing production cost.
√ Lower Consumable Cost
Staples are significantly more affordable than rivets.
√ One-Person Operation
Designed for single-operator workflow, improving efficiency.
√ Pneumatic Foot Pedal Control
Hands-free operation for better productivity.
√ Laser Positioning Guide
Built-in laser indicator ensures accurate and consistent stapling.
√ Adjustable Worktable
Automatic up-and-down adjustable table for ergonomic operation.
√ Safer Production Process
Designed for safe and stable daily production.
